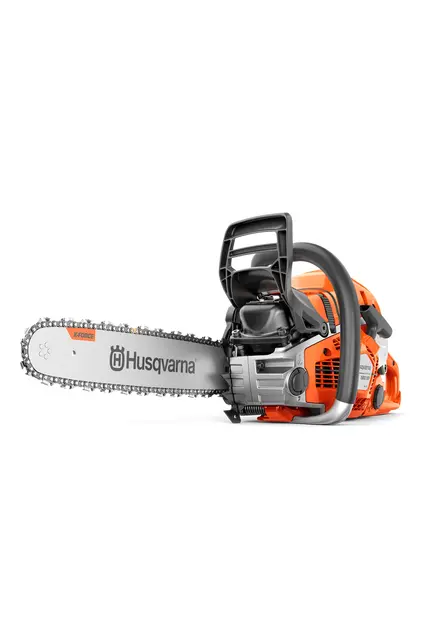

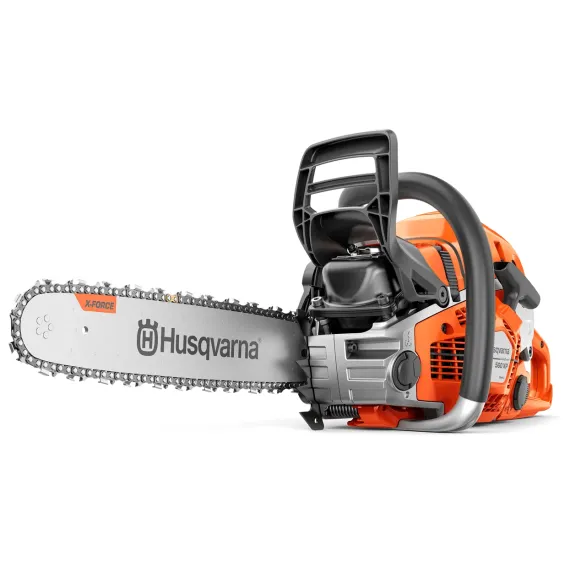

Husqvarna 560 XP® Mark II Chainsaw | Professional Performance

Features

General

Air Injection Filters 98% of Incoming Dust

Give you full working days with maintained performance and less wear on the engine.

Always Optimized

Thanks to AutoTune 3.0, the engine settings are always optimized for maximum startability and performance in all conditions, keeping you going no matter the challenges. No need for manual carburetor adjustment.

Brand

Husqvarna

Felling Sight to Last a Lifetime

Perfect sight is critical when felling – so we made one that will outlast the chainsaw itself.

Flip Up Tank Caps

Easy to open and secure firmly, even when wearing thick winter gloves.

High Cutting Capacity

New engine design offers plenty of grunt for peak performance even during longer cuts. The high cutting capacity makes the saw ideal for productive operation – even when using a longer guide bar.

Low Vibrations

Husqvarna’s anti vibration system efficiently separates your hands from the vibrations generated by the engine and the cutting equipment. This is to protect your body but also to reduce the fatigue in your arms and hands and in the end of the day contribu

Made for Professional Use

Engineered for professional use, offering power, performance and durability for demanding tasks.

Magnetic Filter Protects the Engine

A magnetic filter inside the fuel hose effectively prevents metal particles from reaching the carburetor and engine, which minimizes wear and interruptions.

Model

560 XP® Mark II

Optimized Saw Body

No protruding parts, a smooth underside, rounded starter cover and well-protected controls all make the saw easy to handle.

Quick and Easy Adjustment

Chain tension should be checked regularly during use. The saw comes with a side-mounted chain tensioner that makes adjustment quick and easy.

Retained Bar Nuts

The retaining function prevents losing the bar nuts.

Retained Starter Screws

The retaining function prevents losing the screws holding the starter.

Slimmed-Down Design

Low, slender saw body makes the chainsaw easy and convenient to handle in any situation.

X-Torq® Engine

The X-Torq® engine design increases torque over a wider rpm range providing maximum cutting power.

Specifications

Bar Length (cm)

38

Chain Pitch

.325"

Chain Speed at Max Power (m/s)

18.5

Chain Type

S35G

Cylinder Displacement (cm³)

59.8

Equivalent Vibration Level (ahv, eq) Front Handle (m/s²)

3.7

Equivalent Vibration Level (ahv, eq) Rear Handle (m/s²)

3.7

Exhaust Emissions (CO₂ EU V) (g/kWh)

778

GTIN-13/EAN

7333377337190

Output Shaft Power (kW)

3.5

Packaging Height (mm)

250

Packaging Length (mm)

470

Packaging Width (mm)

340

Recommended Bar Length, Max (cm)

50

Recommended Bar Length, Min (cm)

33

Sound Power Level, Guaranteed (LWA) (dB)

118

Sound Pressure Level at Operators Ear (LpA) (dB)

107

Weight (kg)

5.8

Find similar

Description

The Husqvarna 560 XP® Mark II is a powerful 60cc chainsaw designed for professional forestry, offering exceptional performance for all types of trees. With its AutoTune 3.0 technology and lightweight design, this chainsaw ensures easy handling and optimal operation in any condition.

High cutting capacity: New engine design offers plenty of grunt for peak performance even during longer cuts, making it ideal for productive operation.
Slimmed-down design: Low, slender saw body makes the chainsaw easy and convenient to handle in any situation.
Always optimized: Thanks to AutoTune 3.0, the engine settings are always optimized for maximum startability and performance in all conditions.
X-Torq® engine: Increases torque over a wider rpm range providing maximum cutting power.
Air Injection: Filters 98% of incoming dust, ensuring maintained performance and less wear on the engine.
Low vibrations: Husqvarna’s anti-vibration system protects your body and reduces fatigue, contributing to a more productive workday.
Quick and easy adjustment: Side-mounted chain tensioner allows for quick and easy chain tension adjustments.
Made for professional use: Engineered for demanding tasks, offering power, performance, and durability.

Ideal for professionals seeking a reliable and efficient chainsaw, the Husqvarna 560 XP® Mark II combines power and precision, making it the perfect tool for any forestry task. Explore more about this exceptional chainsaw here.
