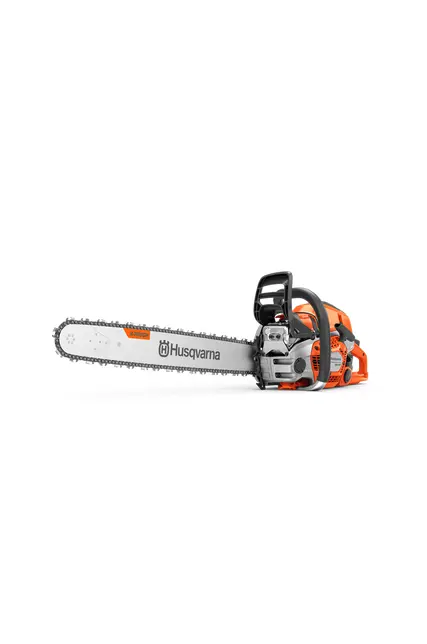

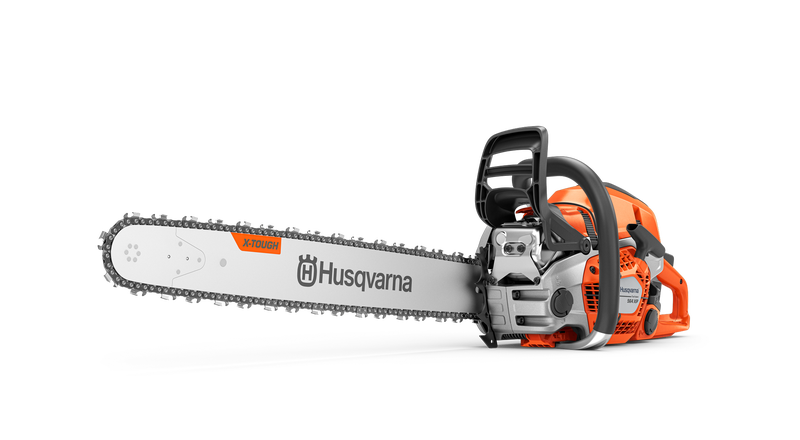

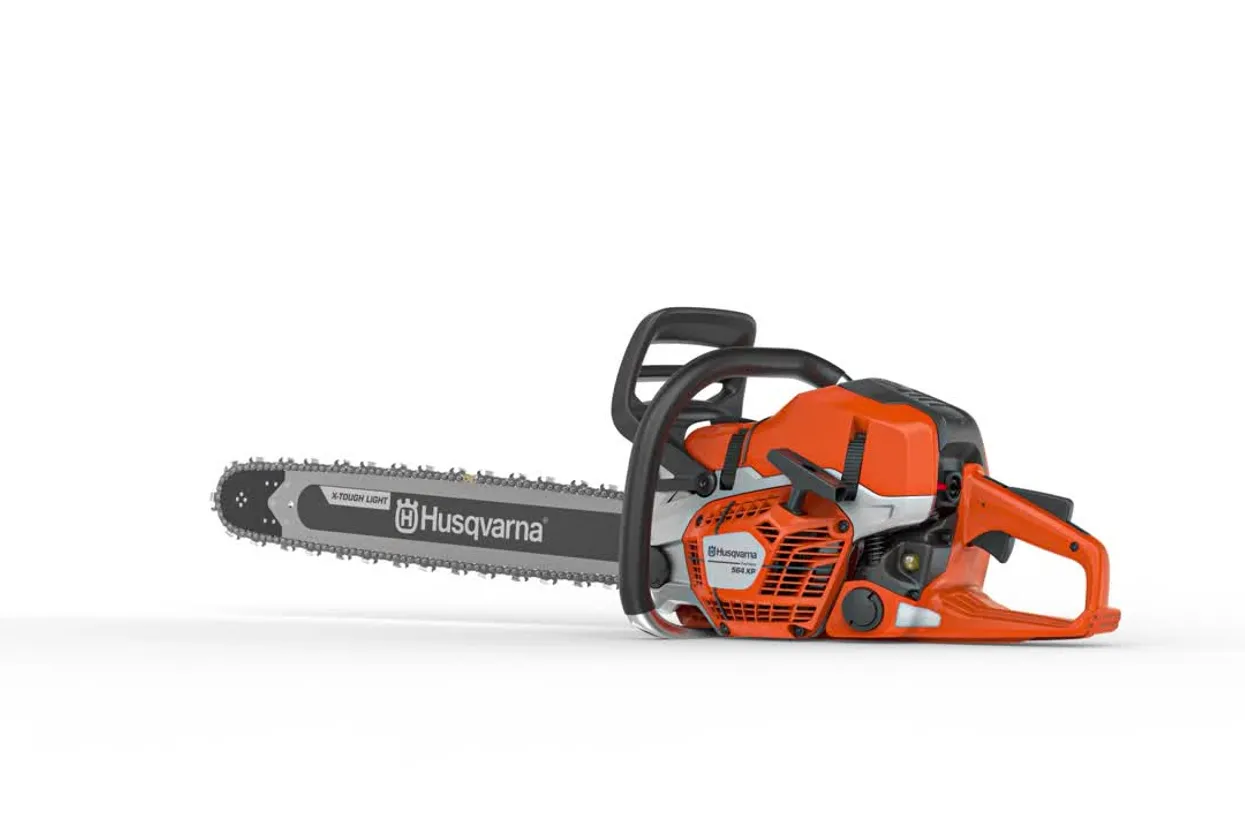

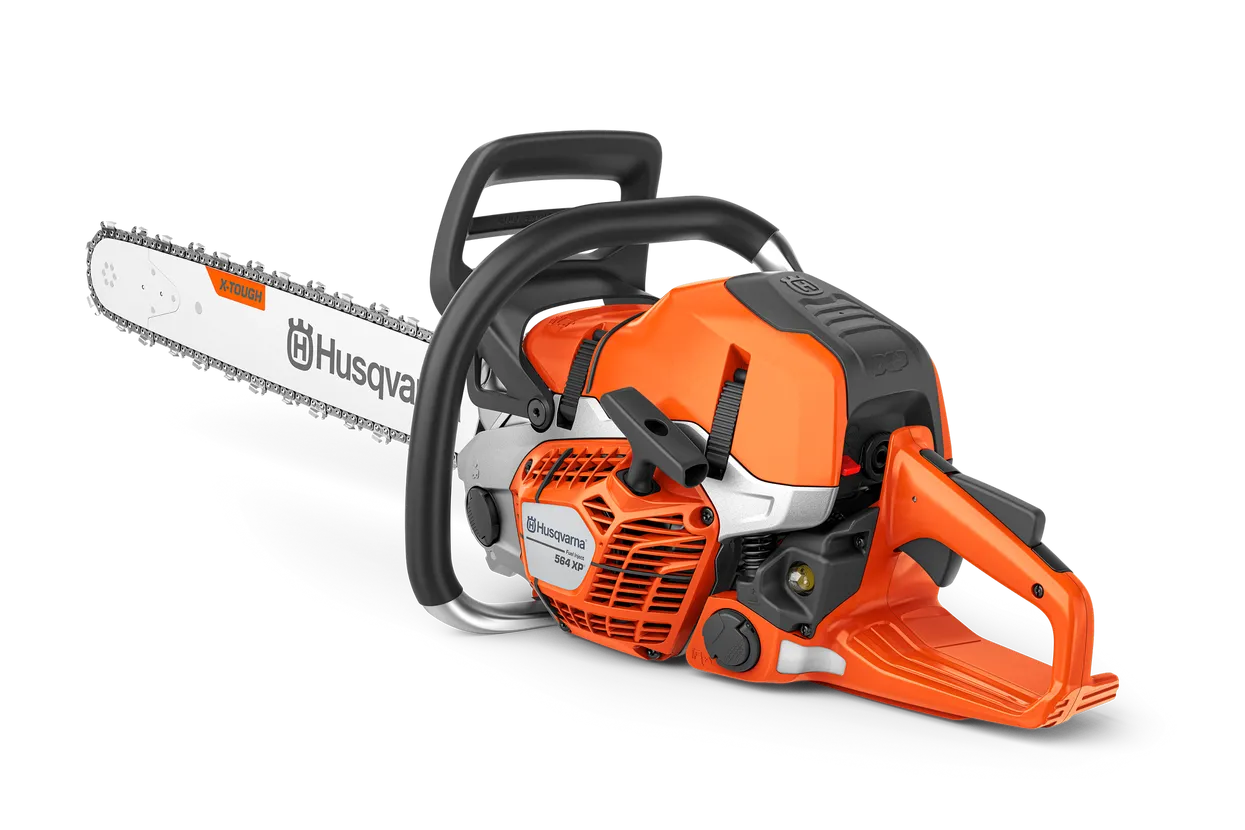

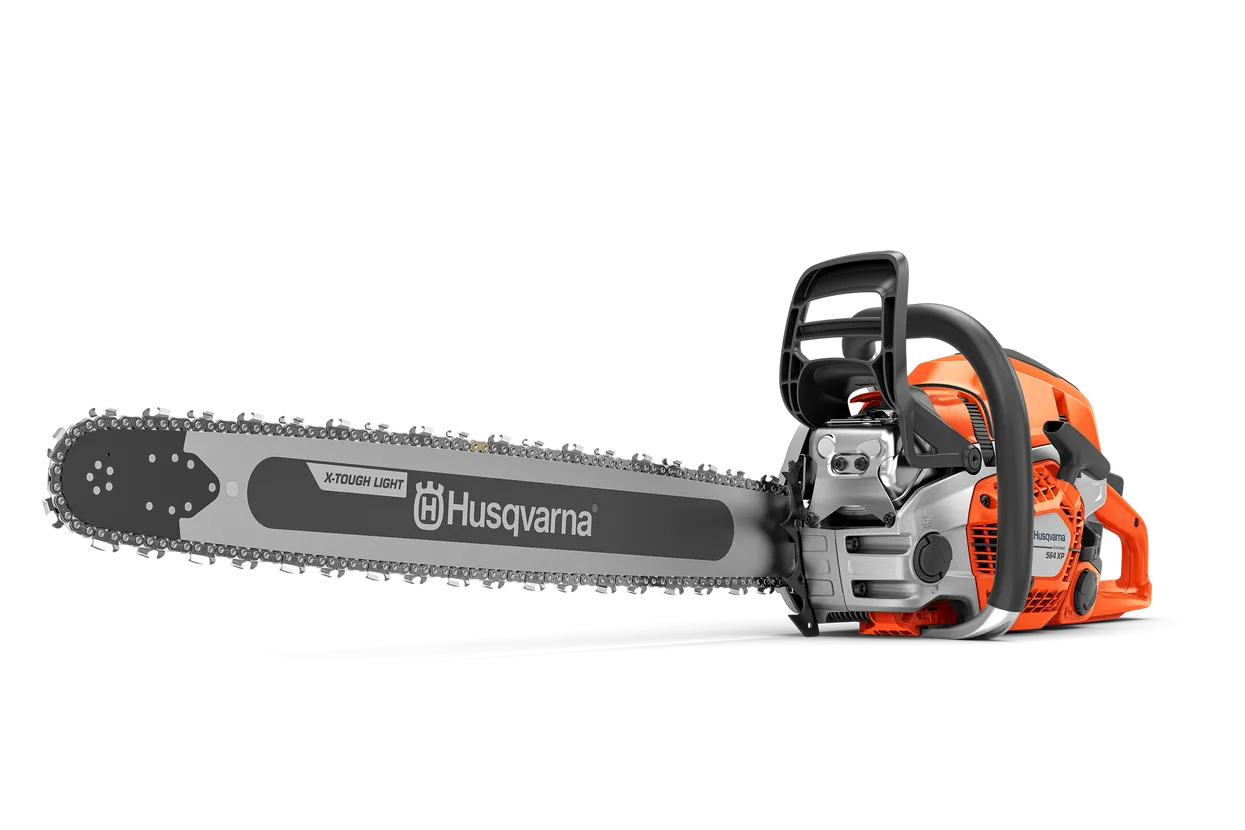

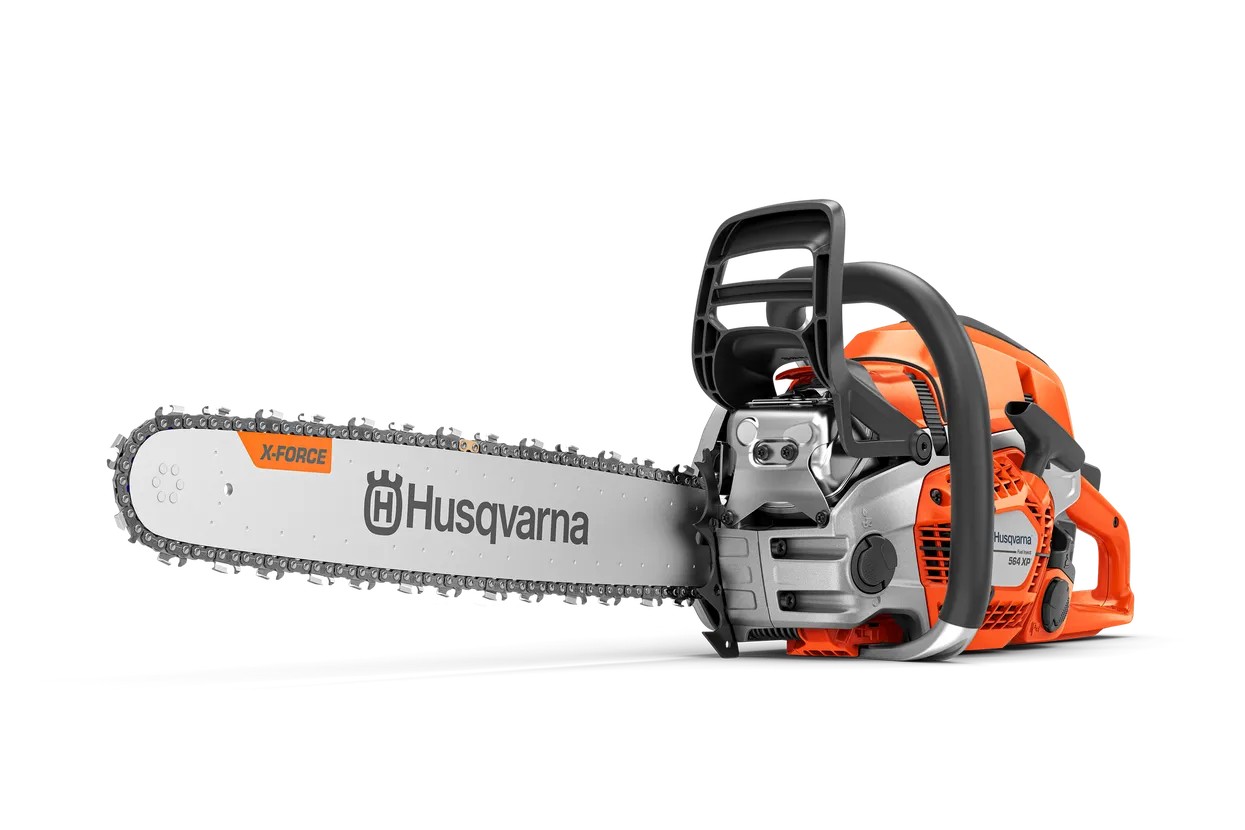

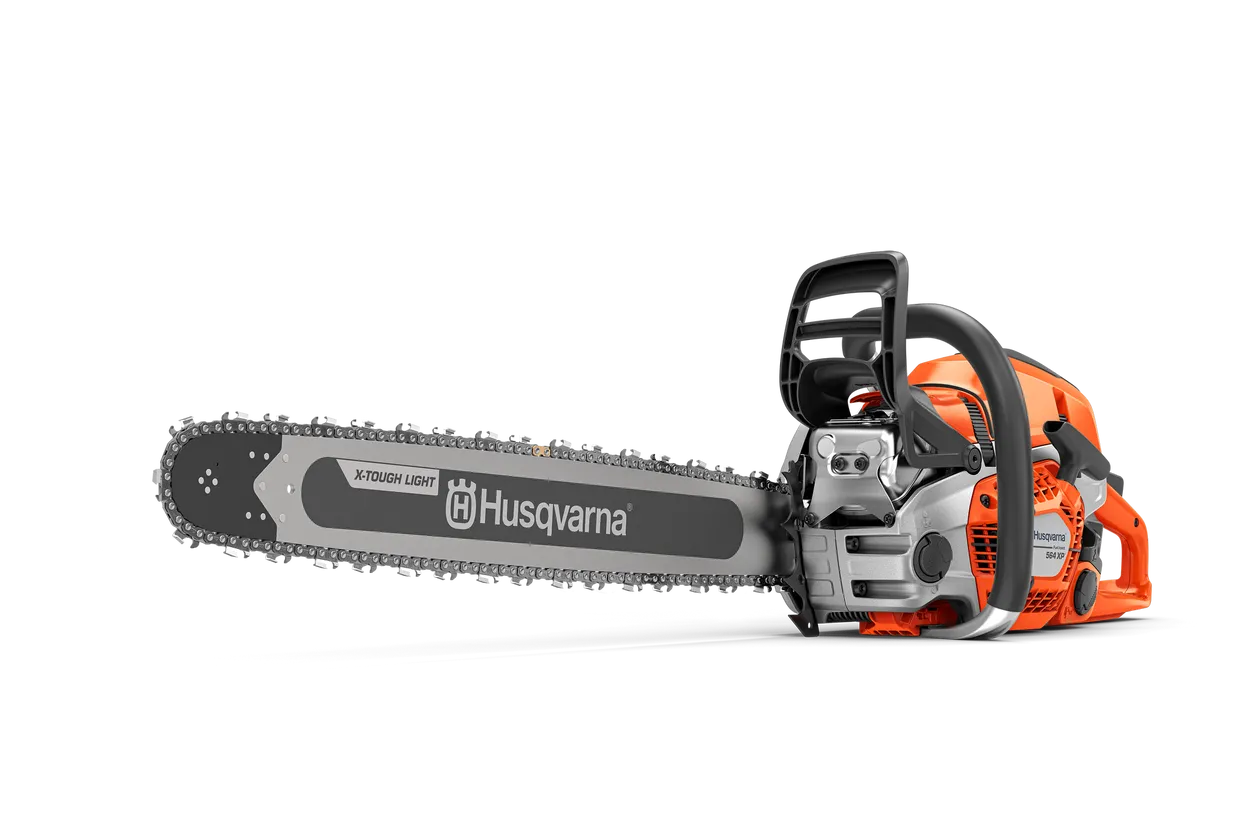

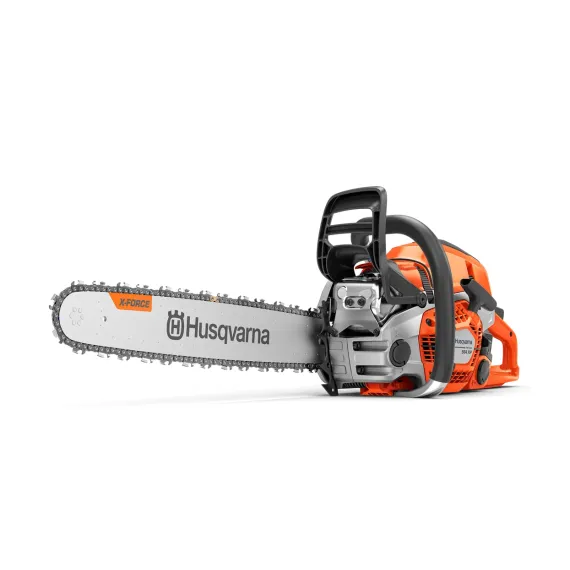

Husqvarna 564 XP® Fuel Inject

Features

General

2K Moulded Fuel Window

Durable 2K molded fuel window reduces the risk of running dry, ensuring higher productivity.

Ability to Carry Longer Bars

The powerful engine in combination with the large bar mount, a sturdy crankcase and sufficient chain oiling provides an ability to carry longer bars.

Air Injection Filters 98% of Incoming Dust

Give you full working days with maintained performance and less wear on the engine.

Brand

Husqvarna

Captive Bar Nuts

The retaining function prevents loosing the bar nuts.

Felling Sight to Last a Lifetime

Raised felling mark for high durability and perfect sight throughout the product's lifespan.

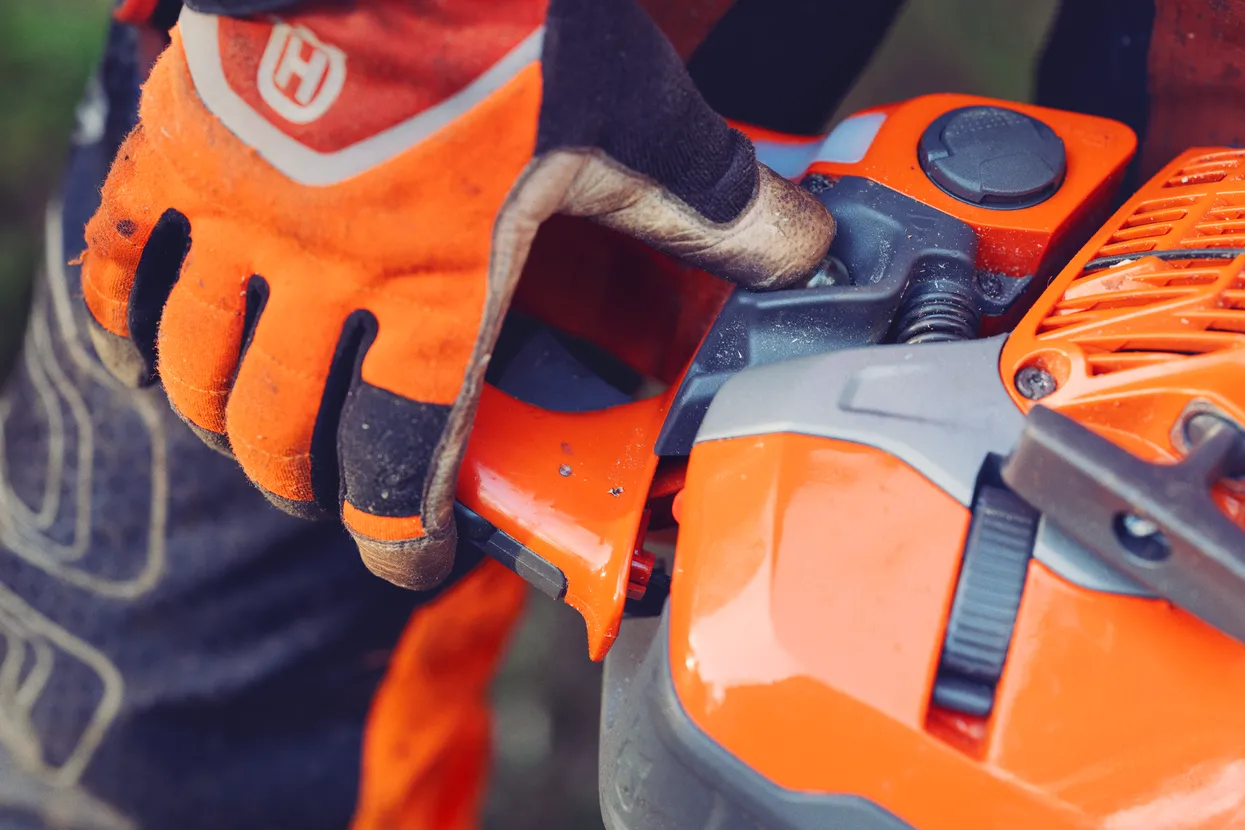

Flip Up Tank Caps

Easy to open and secure firmly, even when wearing thick winter gloves.

Fuel Injection

The fuel injection technology provides a more dynamic fuel delivery than a carburettor engine, allowing faster adaptation to various conditions and increased performance. The design stays lightweight and slim with fewer components in the air filter area,

Improved Serviceability

Clear error codes in the Husqvarna Service Hub enable accurate troubleshooting when connecting and reading the chainsaw.

Lightweight Muffler

Less weight in the saw reduces the strain on your body and makes the saw nimbler. The lightweight muffler adds to your comfort and work efficiency without making a fuss.

LowVib®

Effective anti-vibration dampeners absorb vibration, sparing the user's arms and hands.

Made for Professional Use

Engineered for professional use, offering power, performance and durability for demanding tasks.

Magnetic Filter Protects the Engine

A magnetic filter inside the fuel hose effectively prevents metal particles from reaching the fuel delivery system and engine, which minimizes wear and interruptions.

Model

564 XP® Fuel Inject

Outboard Clutch for Improved Balance

The outboard clutch allows the drive sprocket to be placed between the clutch system and the crankcase, bringing the guide bar closer to the centre of gravity. This results in a narrow chainsaw body and improves the balance of the saw, which is especially

Short Stroke Engine

The short stroke engine design results in a compact product with low weight and low disturbance forces, enabling high performance and durability. This is achieved through a low cylinder, a short stroke length for the piston, a short connecting rod, a smal

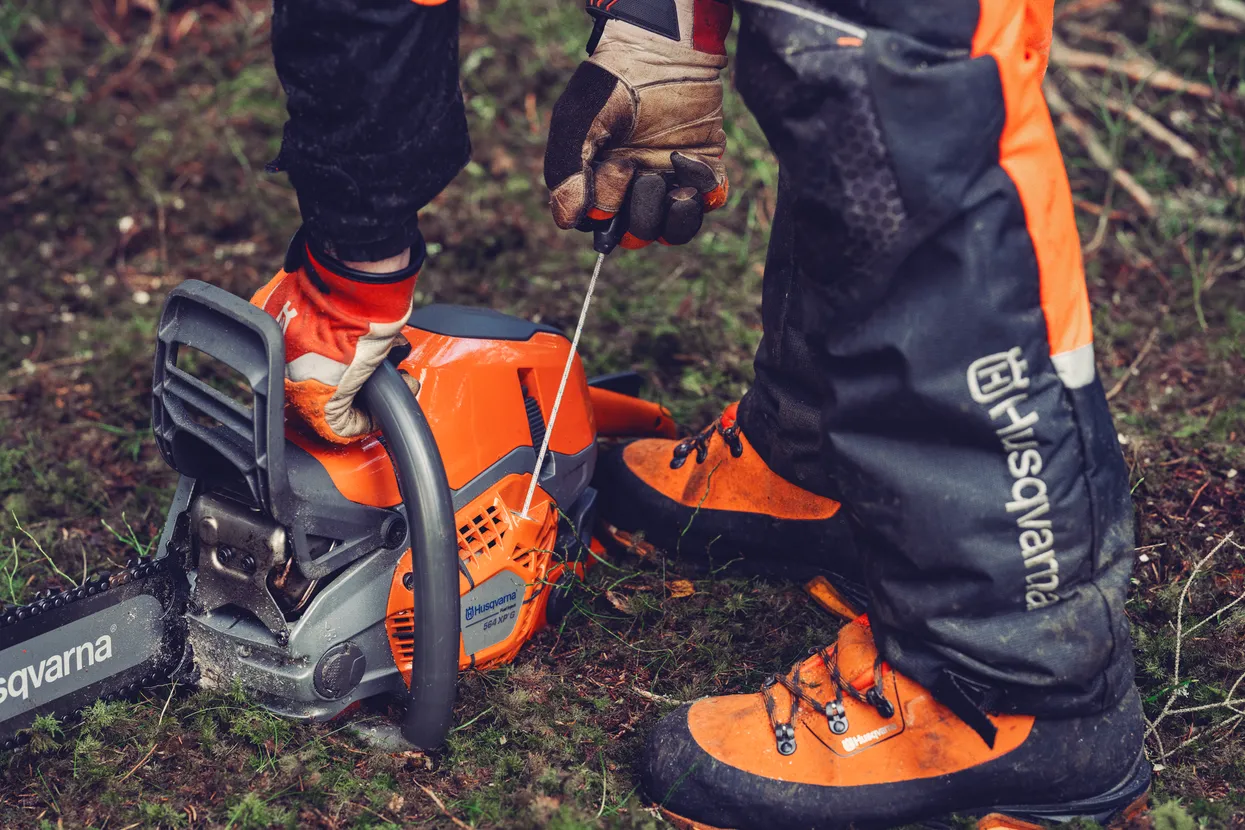

Simple Start Technology

The technology provides an easy and consistent starting procedure, whether the engine is cold or warm. Automatic adjustments to the balance between fuel and air ensure the ideal mix, keeping the engine running smoothly.

Slimmed-Down Design

Low, slender saw body makes the chainsaw easy and convenient to handle in any situation.

Snap-lock Cylinder Cover

Snap-lock cylinder cover saves time when changing spark plugs and cleaning.

X-CUT® Chain

The X-CUT saw chains are designed, built, and tested in Huskvarna, right next to our professional chainsaws. Made for outstanding productivity, the chain offers superior cutting efﬁciency, sharpness that lasts and less need for tensioning. Ultimately, thi

Specifications

Bar Length (cm)

45

Chain Speed at Max Power (m/s)

21.3

Cylinder Displacement (cm³)

62.4

Equivalent Vibration Level (ahv, eq) Front Handle (m/s²)

3.3

Equivalent Vibration Level (ahv, eq) Rear Handle (m/s²)

3

Exhaust Emissions (CO₂ EU V) (g/kWh)

762

Output Shaft Power (kW)

4

Recommended Bar Length, Max (cm)

70

Recommended Bar Length, Min (cm)

38

Sound power level, guaranteed (LWA) (dB(A))

119

Sound pressure level at operators ear (LpA) (dB(A))

106

Weight (kg)

5.8

Find similar

Description

The Husqvarna 564 XP® Fuel Inject is a revolutionary 60cc chainsaw designed for forestry and tree care professionals who demand cutting-edge performance. This model combines the agility of a 50cc chainsaw with the power of a 70cc, offering an exceptional power-to-weight ratio in a compact design. With advanced technologies like a fuel injection system and a new engine, it ensures instant acceleration and maximized productivity throughout your workday.

Fuel Injection: The fuel injection technology provides a more dynamic fuel delivery than a carburettor engine, allowing faster adaptation to various conditions and increased performance.
Simple Start Technology: This feature ensures an easy and consistent starting procedure, whether the engine is cold or warm, keeping the engine running smoothly.
Outboard Clutch for Improved Balance: The outboard clutch design enhances balance by positioning the drive sprocket closer to the centre of gravity, making it easier to handle.
Short Stroke Engine: The compact design results in low weight and disturbance forces, enabling high performance and durability.
Slimmed-Down Design: The low, slender body makes the chainsaw easy and convenient to handle in any situation.
Lightweight Muffler: Reduces strain on your body and enhances work efficiency without adding unnecessary weight.
Magnetic Filter: Protects the engine by preventing metal particles from reaching the fuel delivery system, minimizing wear.
LowVib®: Effective anti-vibration dampeners absorb vibration, sparing the user's arms and hands.

Ideal for professionals seeking a reliable and powerful chainsaw, the Husqvarna 564 XP® Fuel Inject is engineered for demanding tasks, ensuring maximum results with minimal downtime.
